GTWave PoE Surge Protector (SPD)
Product descriptions

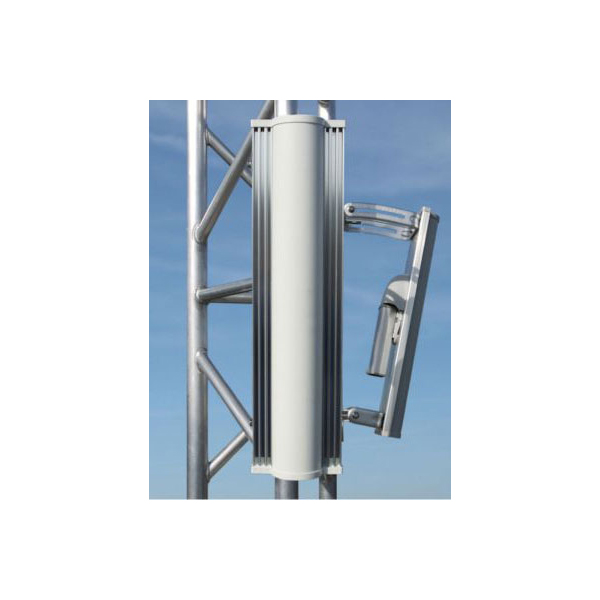

GTSS-5159X3 sector antenna eliminates Side Lobe generation and removes RF output loss of radio equipment, dramatically increasing the speed and distance of equipment in the same RF output. In dense installations, such as base stations, each antenna eliminates interference from each other to ensure better performance than traditional sector antennas.
Application field
ISP communication network, MIMO 3x3, wireless LANGI Wireless Mesh, Base station for WiFi
GTSS-5159X3 sector antenna eliminates Side Lobe generation and removes RF output loss of radio equipment, dramatically increasing the speed and distance of equipment in the same RF output. In dense installations, such as base stations, each antenna eliminates interference from each other to ensure better performance than traditional sector antennas.
Application field
ISP communication network, MIMO 3x3, wireless LANGI Wireless Mesh, Base station for WiFi
| Frequency | 5100~5900MHz |
|---|---|
| Antenna Gain | V1 16.5dBi / V2 16dBi / H 16.5dBi |
| Radial angle | -6dB H 100° / V1 102° V2 102° , -3dB H 76° / V1 75° V2 75° |
| Front to Back Ratio | 30.6dB |
| VSWR Max | 1.8 / 1.35 |
| Antenna Shape | Dual wave (MIMO) 3x3 sector antenna |
| Wind Survival | 160 km/hour |
| Connector / Dimension/Weight | SMA Female x 3 / 783 x 263 x 172 mm / 2.6Kg |
